DESCRIPTION
Option:
1, Front set (Left): Front caliper with left lever, pre-bled hose
2, Rear set (Right): Rear caliper with right lever, pre-bled hose(detached, fits internal cable frame)
3, Full set: Front and rear set
——————————————————————————
Tips: Rear set features split‑hose design, ideal for frames with internal cable routing
——————————————————————————
Brake Model: HD-M285
Brake Type: Hydraulic disc brake
Oil: Mineral
Lever Clamp: 22.2mm
Color: Black

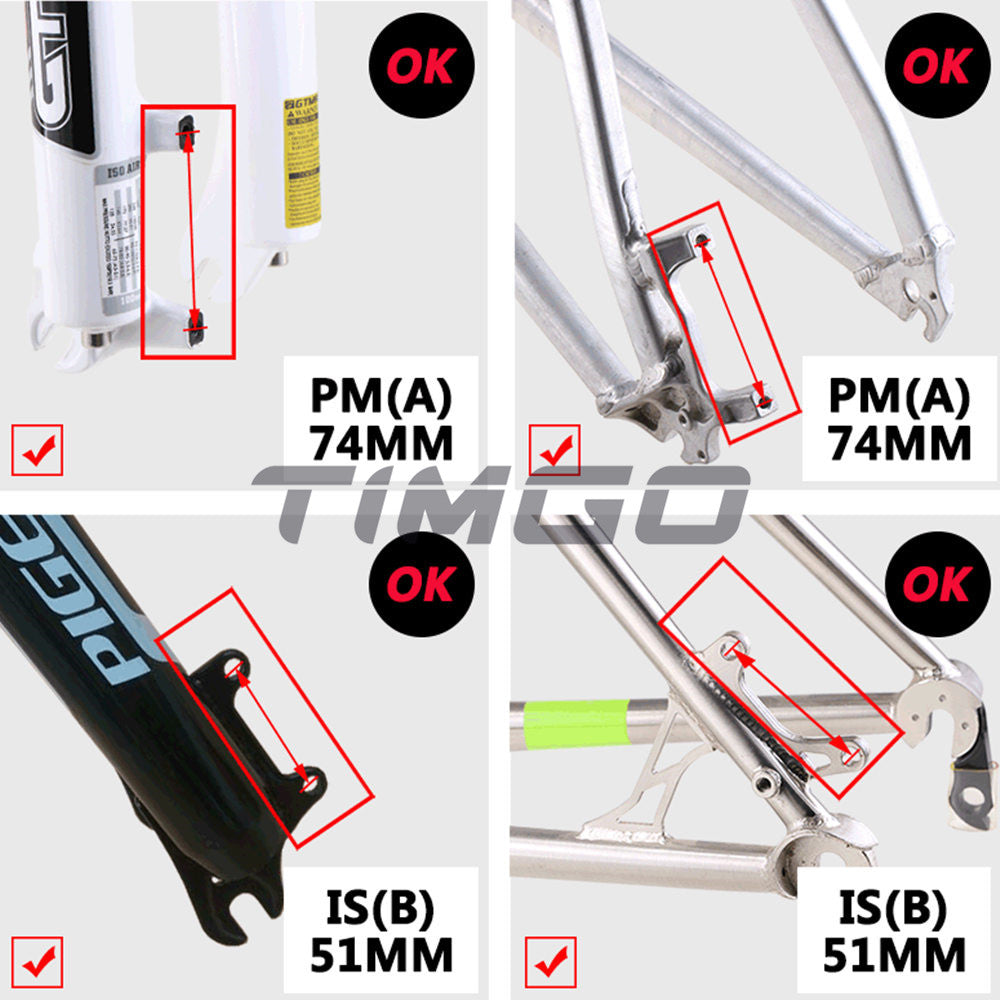

Mount type: Post mount(PM)/IS
Piston: 2
Pad mount: Retaining bolt
Recommended rotor: TR160
Compatible rotor size: 160/180/203mm(180/203mm need extra adapter)
Brake pad(including): E10.11
Front set hose length: 850mm
Rear set hose length: 1500mm
Refined evolution of the M275
Dual piston post mount caliper with forged aluminum body
Easy installation, adjustment and maintenance
2-finger lever blade with reach adjust for smaller hands (86-89mm Reach)
Low noise resin pads included, mineral oil for excellent heat expansion properties
——————————————————————————
Note:
1, Current batch is left lever connect front caliper, right lever connect rear caliper
2, Pls do not install before the empty pinch brake, otherwise it may lead to oil scrapped
