DESCRIPTION
Option:
************************

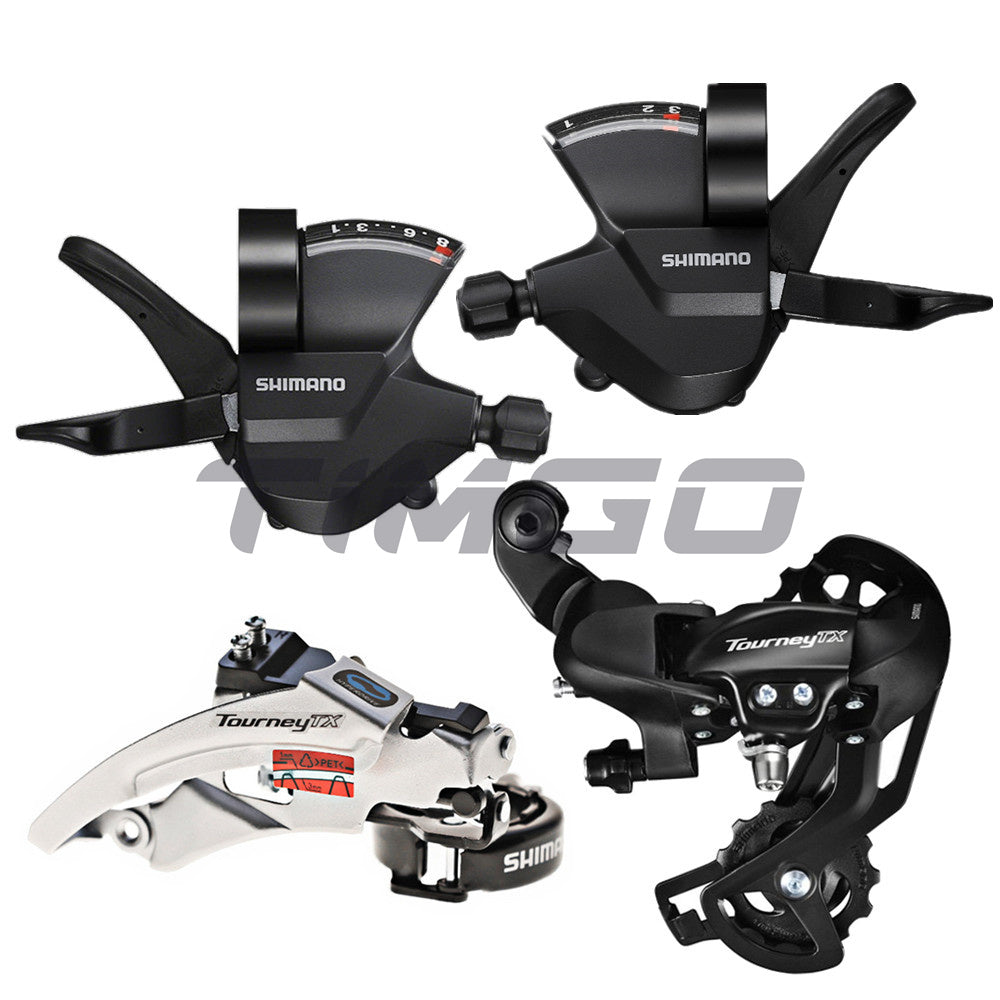

1, Derailleur set(3PCS):
-Shifter (SL-M315,3x8 Speed)
-Front derailleur (FD-TX800)
-Rear derailleur (RD-TX800)
************************
2, Full set(7PCS):
-Shifter (SL-M315,3x8 Speed)
-Front derailleur (FD-TX800)
-Rear derailleur (RD-TX800)
-Crankset (FC-TX801)
-Bottom bracket (BB-UN101)
-Cassette (HG200-8)
-Chain (HG40)
************************
Tips: Customized groupset project, pls contact customer service
——————————————————————————
Item: Crankset
Model: FC-TX801
Level: TourneyTX
Color: Black
Speed: 3x6/7/8
Chainring: 48-38-28T
Compatible chain: HG 8/7/6-speed
P.C.D.: Riveted
Chain guard: with chainguard
Arm length: 170mm
Bottom bracket type: Sqaure taper
Recommended bottom bracket: BB-UN101
Recommended bottom bracket axle length: 123mm
——————————————————————————
Item: Bottom bracket
Model: BB-UN101
Type: Square taper
Shell width: 68mm
Shell thread: BC1.37" x 24T
Axle length: 123mm
Weight: approx 280g
Square tapered axle
——————————————————————————
Item: Shifters
Model: SL-M315
Level: Altus
Left: 3 Speed
Right: 8 Speed
Color: Black
Rapid fire plus
Optical gear display
Come with inner cable
——————————————————————————
Item: Front derailleur
Model: FD-TX800
Level: TourneyTX
Speed: 3× 6/7/8 Speed
Compatible chain: HG 8/7/6-speed
Mount: Clamp-on
Clamp Band size: 31.8mm/34.9mm
(34.9mm with 31.8mm adapter)
Action: Top swing
Cable route type: Dual-Pull(Top and down pull)
Top gear teeth: 48T
——————————————————————————
Item: Rear derailleur
Model: RD-TX800
Level: TourneyTX
Color: Black
Speed: 6/7/8 Speed
Mount: Direct Mount
Cage: Long Cage
Compatible chain: HG 8/7/6-speed
Total capacity: 43T
Max sprocket: 34T
Min sprocket: 11T
——————————————————————————
Item: Cassette
Model: CS-HG200-8
Level: TOURNEY TX / Altus / Acera
Speed: 8 Speed
Cogs type: Cassette
Compatible chain: HG 8/7/6-speed
Teeth: 12-14-16-18-21-24-28-32T
——————————————————————————
Item: Chain
Model: CN-HG40
Level: Tourney
Speed: 6/7/8 Speed
Links: 116 Links
Type: HG 8/7/6-speed
Pin link plate: Gray
Roller link plate: Brown
